EasyHA monitors your systems/DBs/servers to ensure systems, applications, services, and business processes are functioning properly. In the event of a failure, EasyHA can alert technical staff of the problem, allowing them to begin remediation processes before outages affect business processes, end-users, or customers. With EasyHA you will never be left having to explain why an unseen infrastructure outage hurt your organization’s bottom line.

EasyHA includes cloud and mobile app, so you can check the status of your sytems/applications anytime anywhere.

In this section you can learn the meaning of some terms commonly used in EasyHA.

host

- a networked device that you want to monitor, with IP/DNS.

item

- a particular piece of data that you want to receive off of a host, a metric of data.

trigger

- a logical expression that defines a problem threshold and is used to “evaluate” data received in items

When received data are above/below the threshold, triggers go from 'Ok' into a 'Problem' state. When received data are below/above the threshold, triggers stay in/return to an 'Ok' state.

event

- a single occurrence of something that deserves attention such as a trigger changing state or a discovery/agent auto-registration taking place

action

- a predefined means of reacting to an event.

An action consists of operations (e.g. sending a notification) and conditions (when the operation is carried out)

media

- a means of delivering notifications; delivery channel

notification

- a message about some event sent to a user via the chosen media channel

remote command

- a pre-defined command that is automatically executed on a monitored host upon some condition

template

- a set of entities (items, triggers, graphs, screens, applications, low-level discovery rules) ready to be applied to one or several hosts

The job of templates is to speed up the deployment of monitoring tasks on a host; also to make it easier to apply mass changes to monitoring tasks. Templates are linked directly to individual hosts.

application

EasyHA consists of several major software components, the responsibilities of which are outlined below.

EasyHA Server

This is the centre of the EasyHA software. The Server can remotely check networked services (for example web servers) using simple service checks, and perform other agent-less monitoring such as CPU utilization on Linux, but it is also the central component to which the clients (browser or Win32-EasyHA-Client) will check instant information and statistics.

The Server is the central repository in which all configuration, statistical and operational data are stored, and it is the entity in the EasyHA software that will actively alert administrators when problems arise in any of the monitored systems.

In order to allow easy access to the monitoring data and the configuration of EasyHA from anywhere and from any platform, the Web-based Interface is provided.

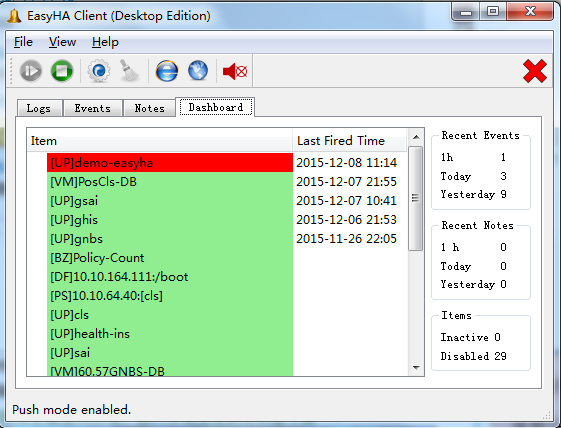

EasyHA Win32 Client

The web interface cannot provide instant message function. You may want to receive the notification as soon as possible. And addition to configure EasyHA to send text SMS, you can also install the Win32 EasyHA Client. When trigger fired, the icon in tray will be blinking.

EasyHA Cloud

Your EasyHA server is running in LAN of your company. Generally speaking, it is difficult to access the EasyHA server behind firewall from internet. So we provide EasyHA Cloud service, you can synchronize the monitoring data to EasyHA Cloud, and then you can access the data anywhere. To access EasyHA Cloud, you can use browser such IE, and the better choice is EasyHA App.

EasyHA App for EasyHA Cloud

With EasyHA App, you can check the status of your servers/applications anywhere through your smart phone. What is more, you will receive notification when your predefined trigger is fired.

EasyHA Server

Windows

• Download the installation pack, and then unzip the downloaded file.
• Run the installation pack (the file name is setupEasyHA.exe) as administrator.
• Click START menu, click “EasyHA Server” folder, and then click “Manage EasyHA Server” button. The Java wrapper for EasyHA Server will appear.
• Click “Server” menu, and then click “Start” button.

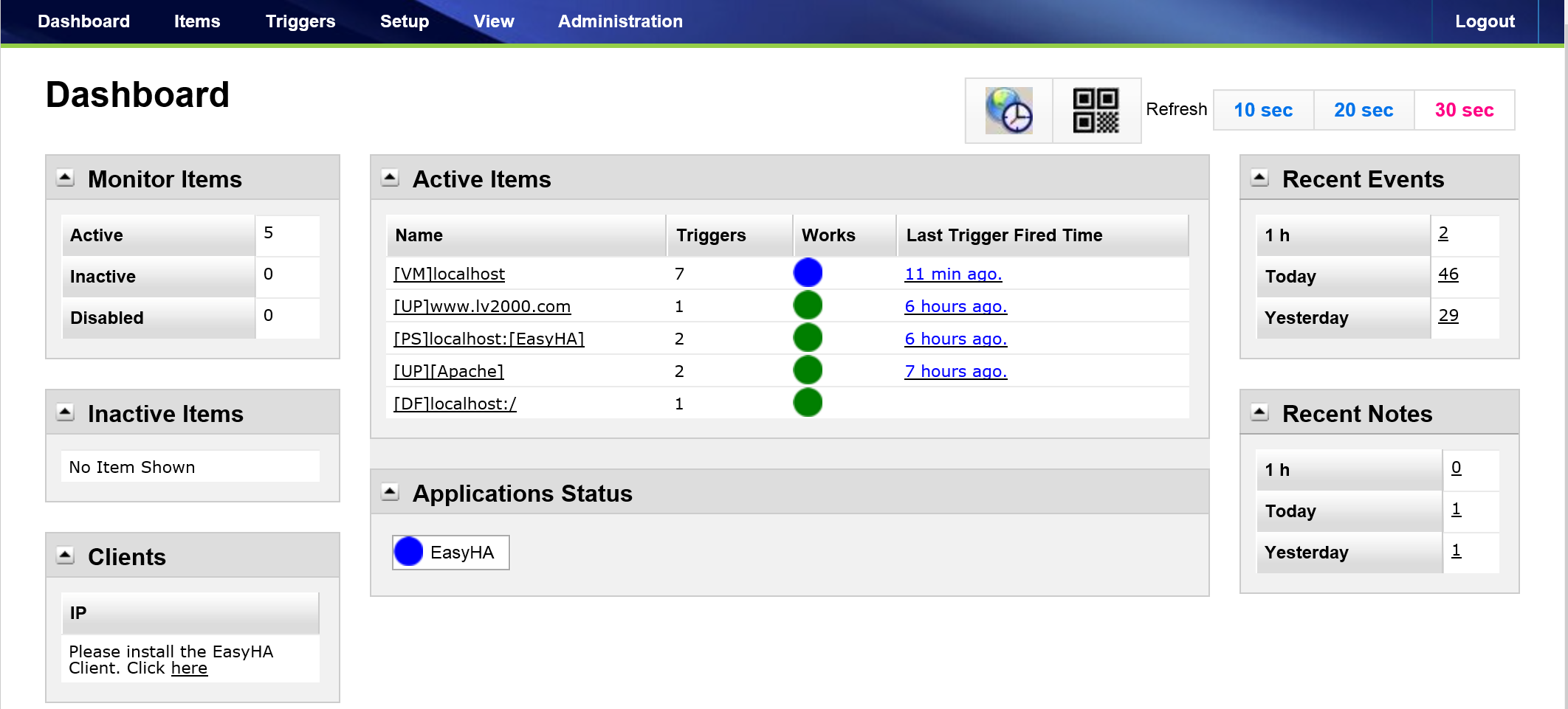

• The server will be started; you can point your browser to http://localhost:8004/ to visit the web frontend.
• At the first time, you can click “Default logon” button, and then logon as “root”. After logon as root, you are better off changing the root’s password. The initial password is 1234.

Linux

• Download the installation pack. We provide 2 distributions for x86 and x86_64 platform.
• Copy the downloaded file to /usr/local/, decompress the file. Please run this command: tar xvfz easyha-x86.tar.gz
• Run cd easyha
• Run ./easyha, study the usage.
• Run nohup ./easyha -s &, start the server.
• Visit web frontend of EasyHA Server from another client computer, the URL is similar to http://server-name:8004/
• At the first time, you can click “Default logon” button, and then logon as “root”. After logon as root, you are better off changing the root’s password. The initial password is 1234.

Other OS (Mac, UNIX etc.)

Please contact the vendor support@lv2000.com.

FAQ

Where to download installation pack?

The free trial version is available on this page: http://www.lv2000.com/easyha/download.php.
If you have purchased license, the vendor will send you the licensed copy.

Which version should I choose between x86 Linux and x86_64 Linux?

Please login your Linux by ssh, and run the following command:
getconf ULONG_MAX | grep "18446744073709551615" > /dev/null && echo "x64" || echo "x86"

EasyHA Client for Windows

• The EasyHA Client for Windows is free software. Please download it from http://www.lv2000.com/products/setupEasyHAClient.zip.
• Unzip the downloaded file, double click the setupEasyHAClient.exe.
• The installation wizard will guide you through installation process.
• Run easyhaclient.exe after the installation is finished.
• You need to fill in the host name and port of EasyHA Server the first time you run EasyHA Client. You will also need to fill in user name and password.

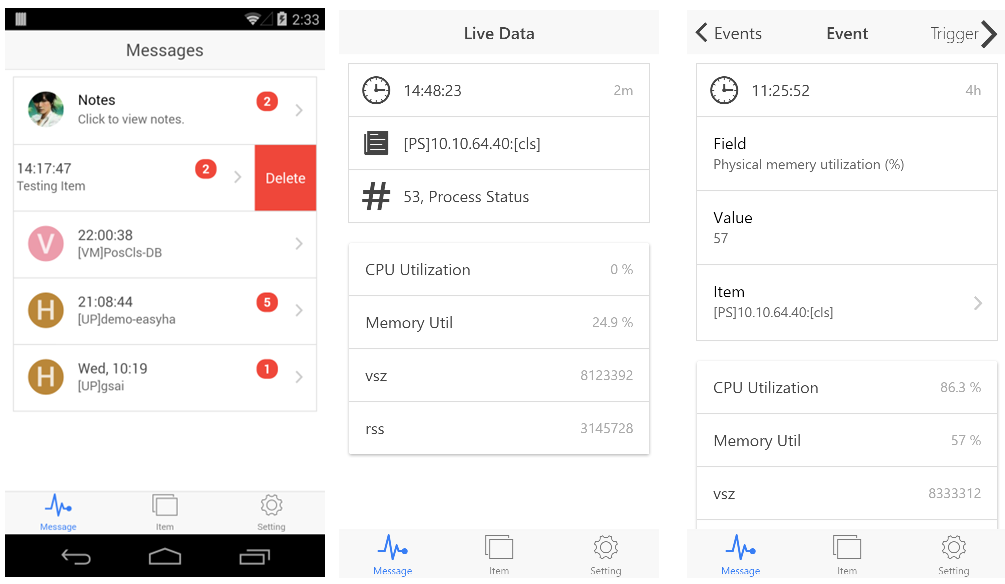

EasyHA Client for iOS and Android

We have released EasyHA App for iPhone, iPad and Android phone. We can connect to EasyHA Cloud by your mobile device.

EasyHA app is free software.

How to install

• For iPhone users, please open app store, search “easyha”, you will see EasyHA client, and the click “Get” button.
• For Android users, please open Google Play, search “easyha”, and then install the EasyHA client.



The first time you open EasyHA app, you will see the sigin-in screen. You need to fill in the EasyHA ID, and click “Sign in” button.

How to get EasyHA ID

• Please visit EasyHA web frontend, logon as root.
• Click Administration menu.
• Click “Cloud Synchronization” button.

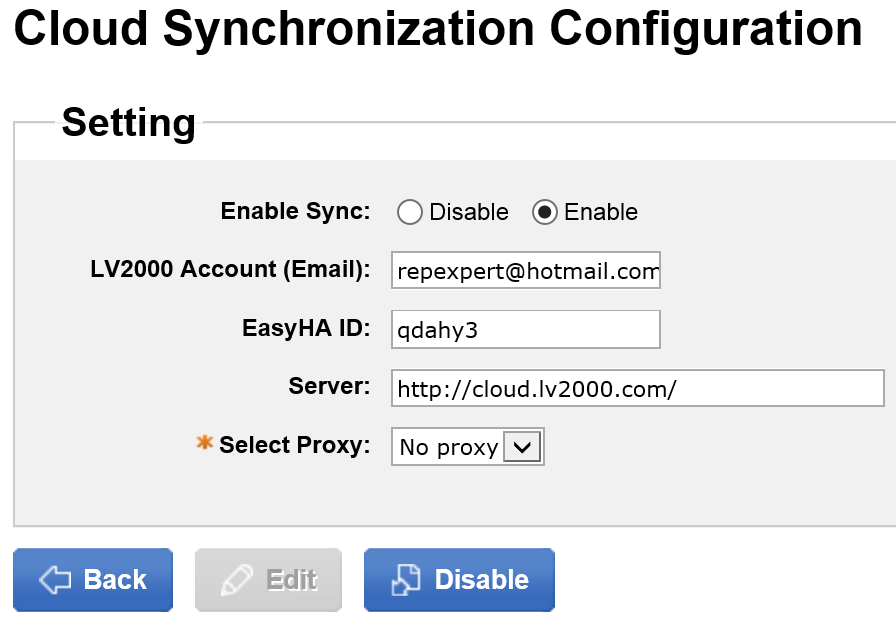

• The “Cloud Synchronization Configuration” screen appear, please click “Setup Cloud Synchronization” button.
• Select Enable from “Enable Sync”, fill in your email address, click Save button. If your EasyHA Server cannot access internet directly, you may need to setup a proxy.
• The EasyHA Server will access EasyHA Cloud, apply for EasyHA ID. So you will see the EasyHA ID in next screen.

FAQ

I have not installed the EasyHA server, I just want to test EasyHA app, can you give an EasyHA ID for testing purpose?

A: Please use this EasyHA ID: qdahy3. It is associated with http://demo.lv2000.com:8004

We provide general SLA audit report. In case you have special needs, please contact the vendor. http://www.lv2000.com/easyha/contactus.php
